ER DC97KIT4 Dryer Repair Kit for Samsung

Description

Part No. ERDC97KIT4    Dryer Repair Kit for Samsung Dryer

Part purpose:

Kit contains the common parts that wear out from age and use.

Part location on dryer:

Drum rollers support the drum and allow it to turn.  The belt tension roller rides against the smooth side of the belt and maintains belt tension.  The belt installs around the drum and the motor pulley with the ribbed side toward the drum.

Part failure symptoms:

Bad rollers will often sound like there are tennis shoes in the dryer as it runs with no clothes inside.  Bad rollers sometimes make the drum resistant to turning to the point the motor cannot start.

Part diagnosis:

Removing the drum will allow inspection of the rollers.  Rollers and tension pulley should turn freely and smoothly on the shaft with no wobble.  The belt should have well-defined grooves toward the drum and pulley with no signs of wear on the smooth back.  Bring your parts in for free confirmation that it is good/bad or call the U-FIX-IT store for free assistance with diagnosis.

Fits many Samsung Dryers

Description

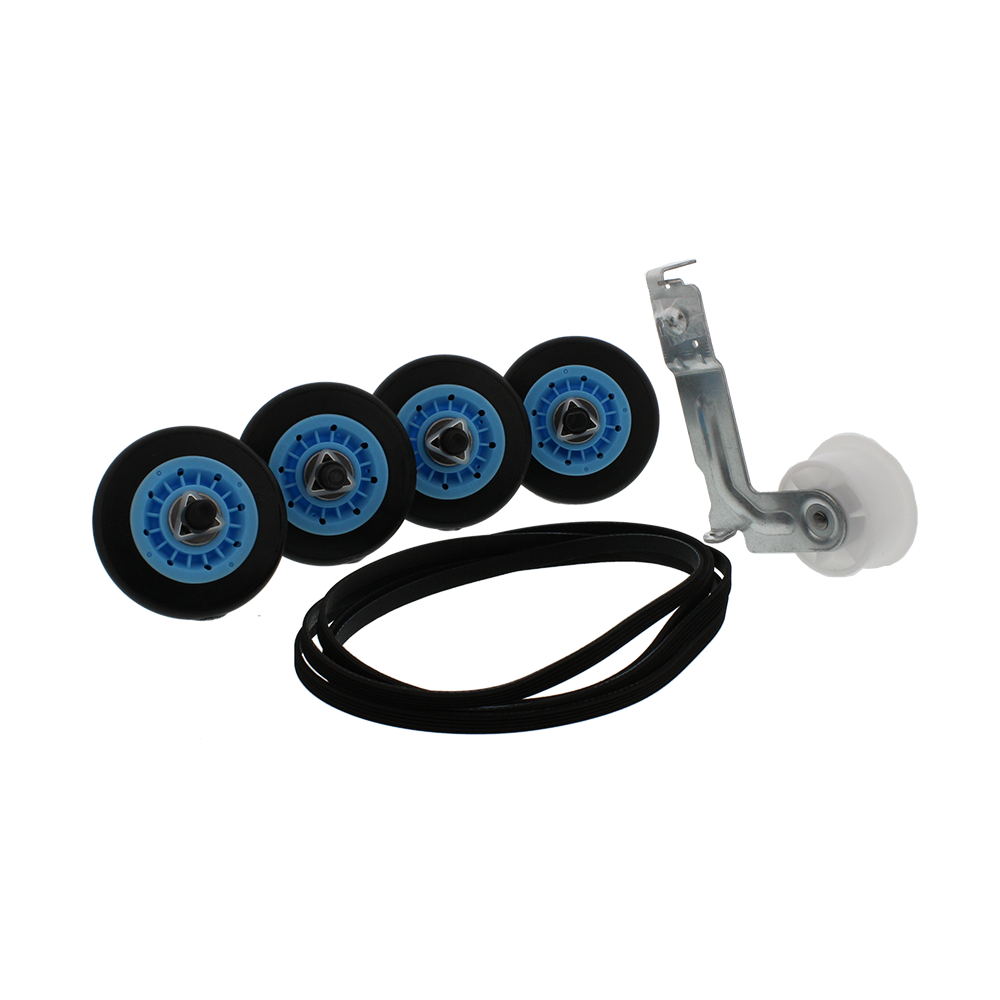

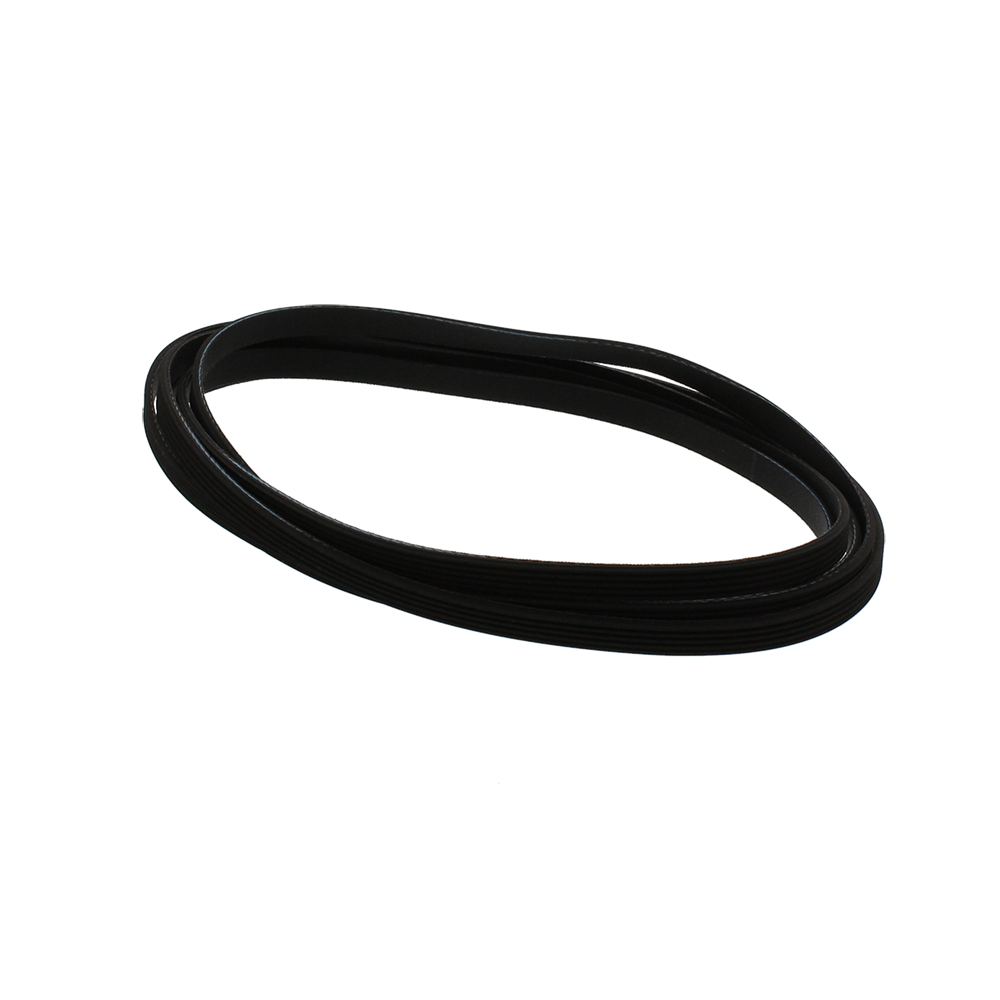

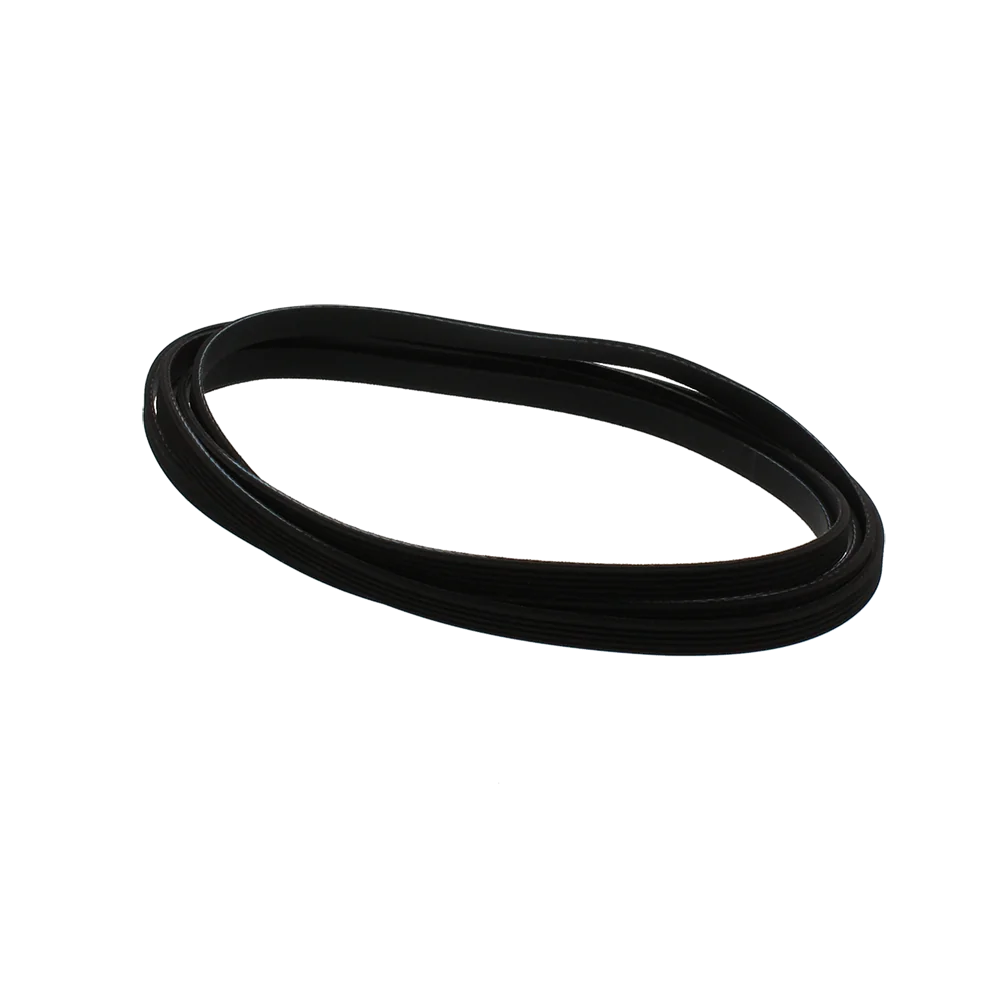

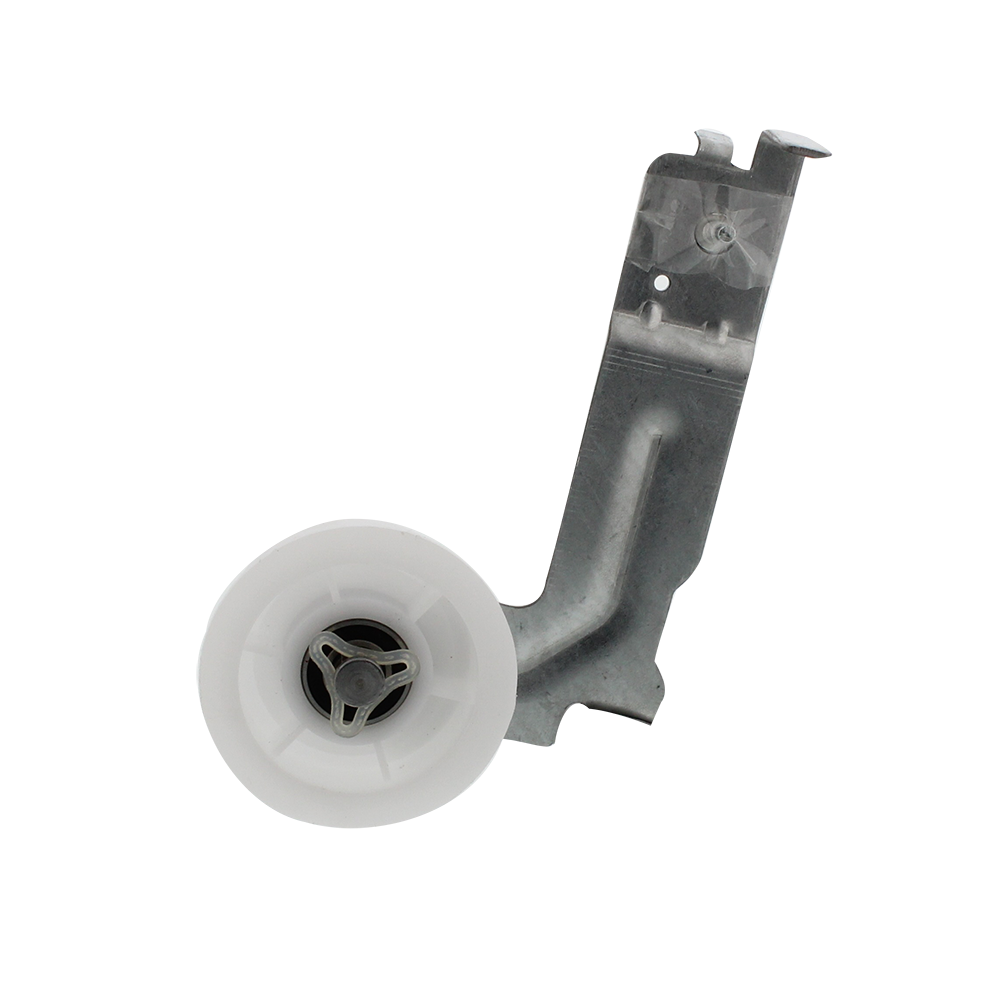

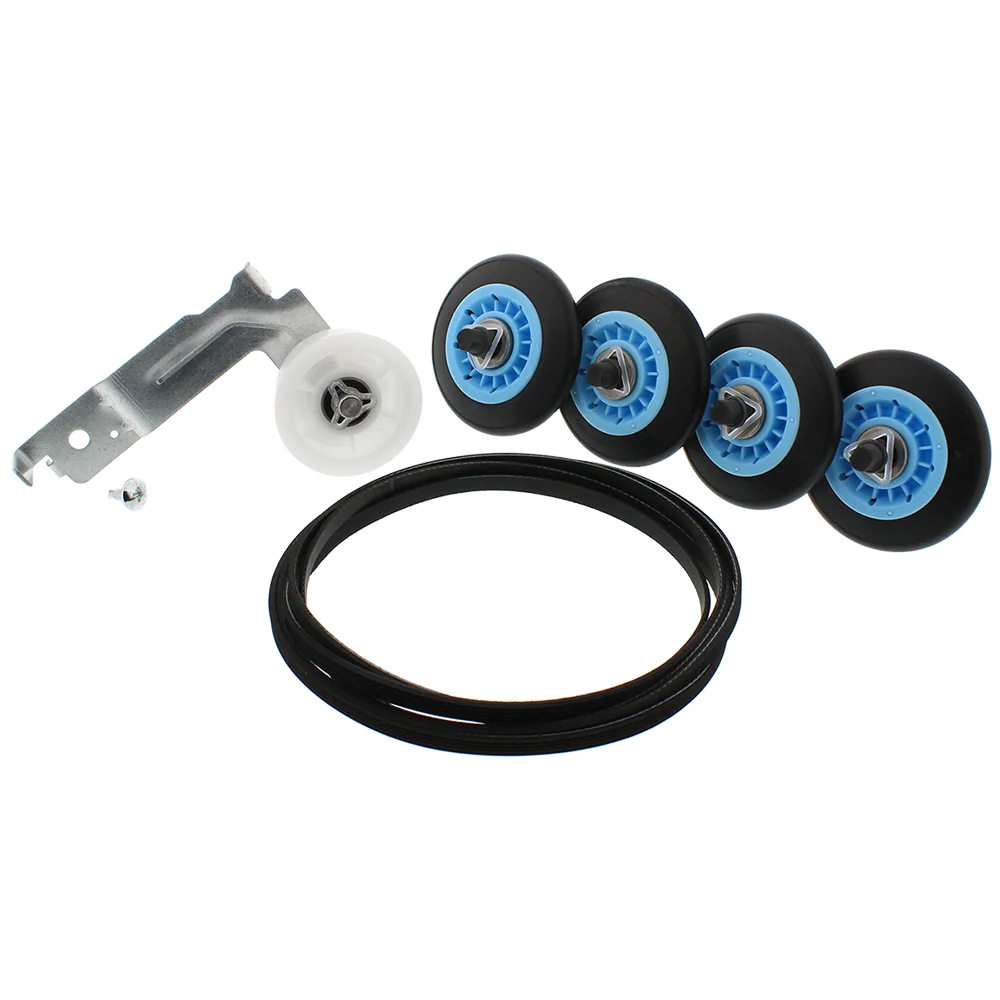

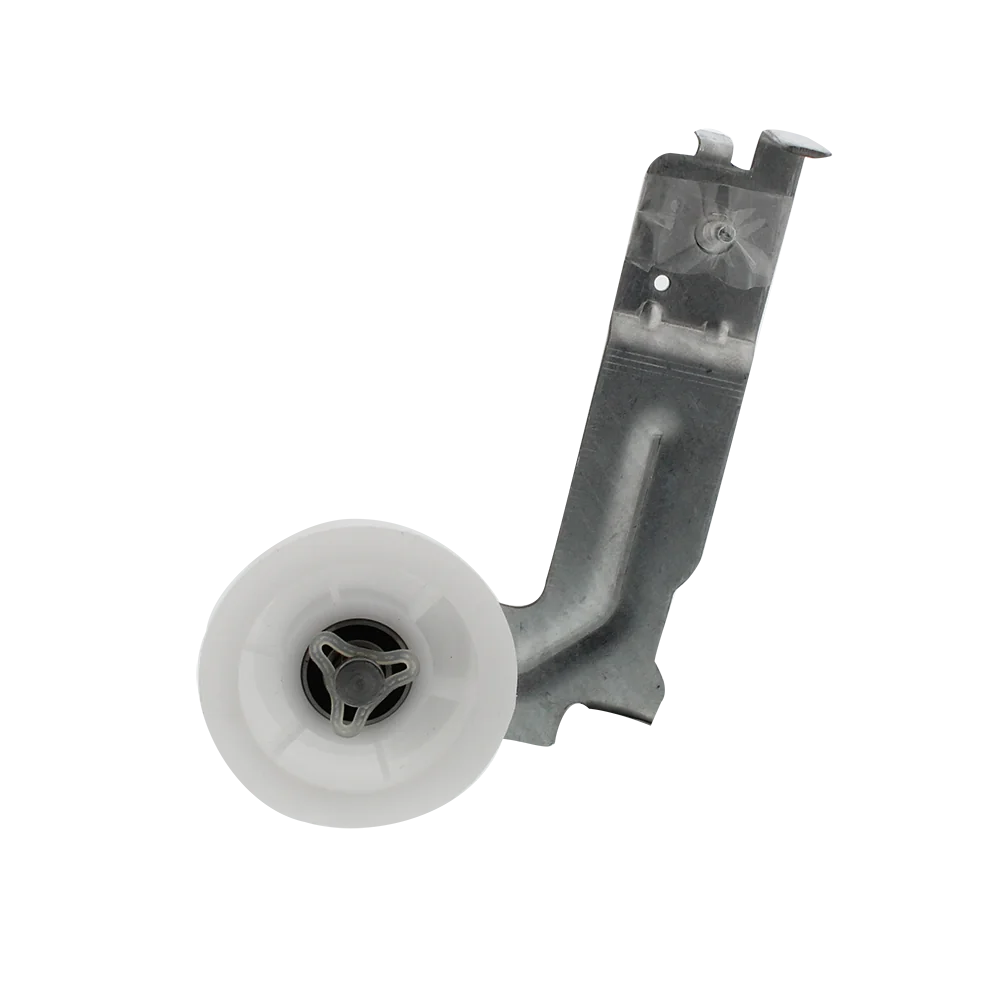

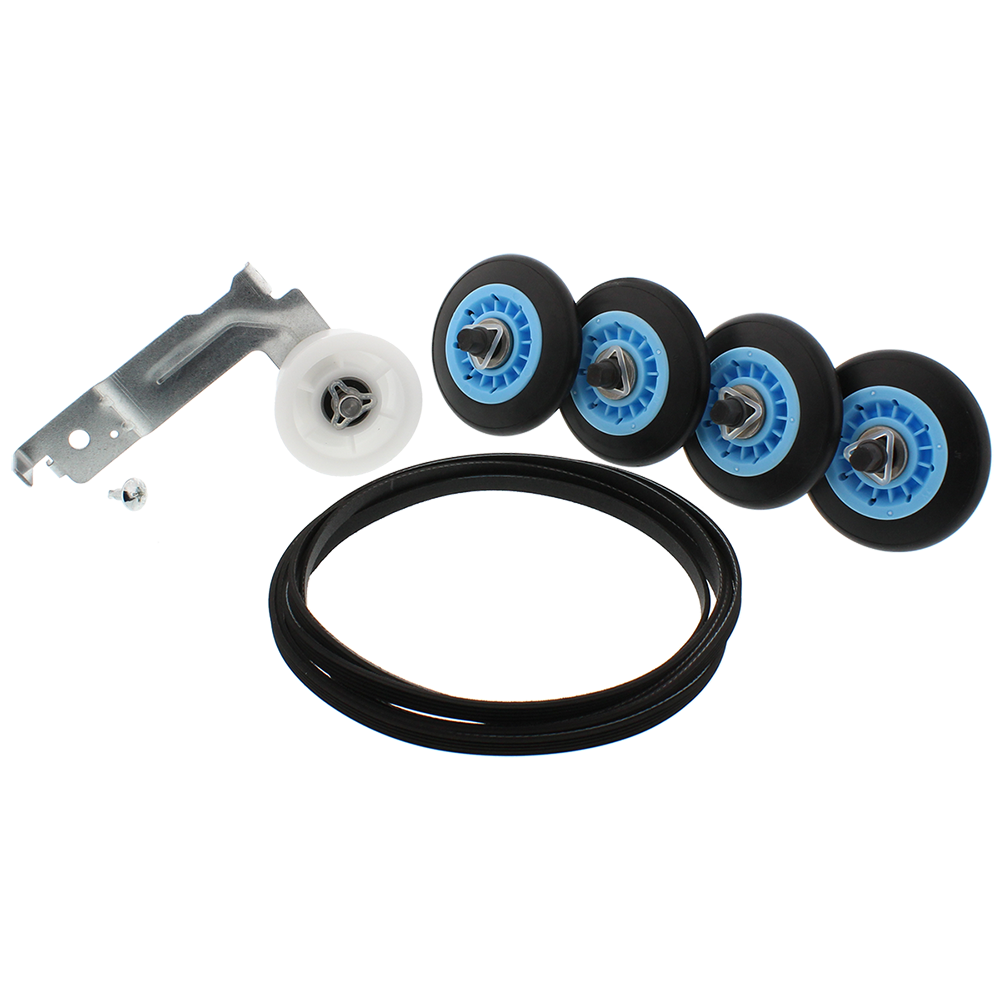

Kit contains 4 drum rollers replacing DC97-167892A, 1 belt tension roller replacing DC93-00634A, and a belt replacing 6602-001655

Cross Reference Info:

Replaces 6602-001655 belt, DC97-16782A rollers, DC93-00634A
