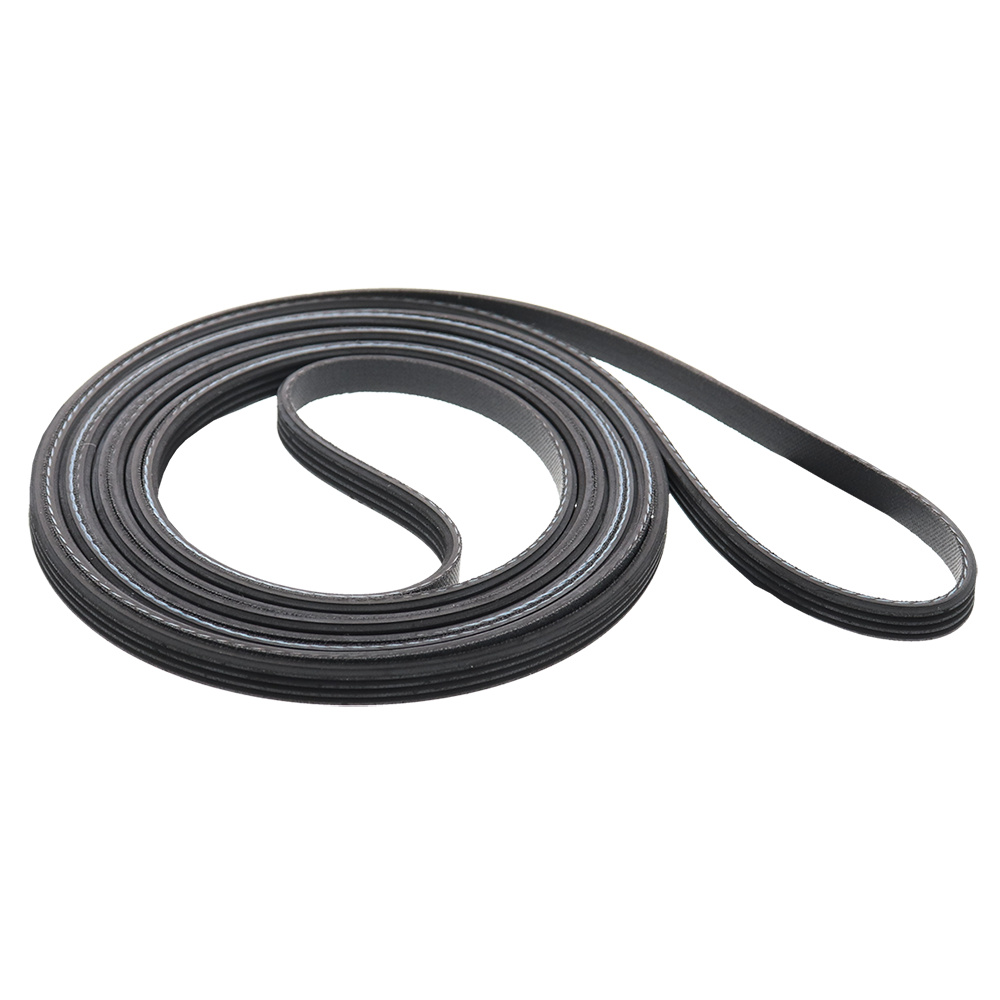

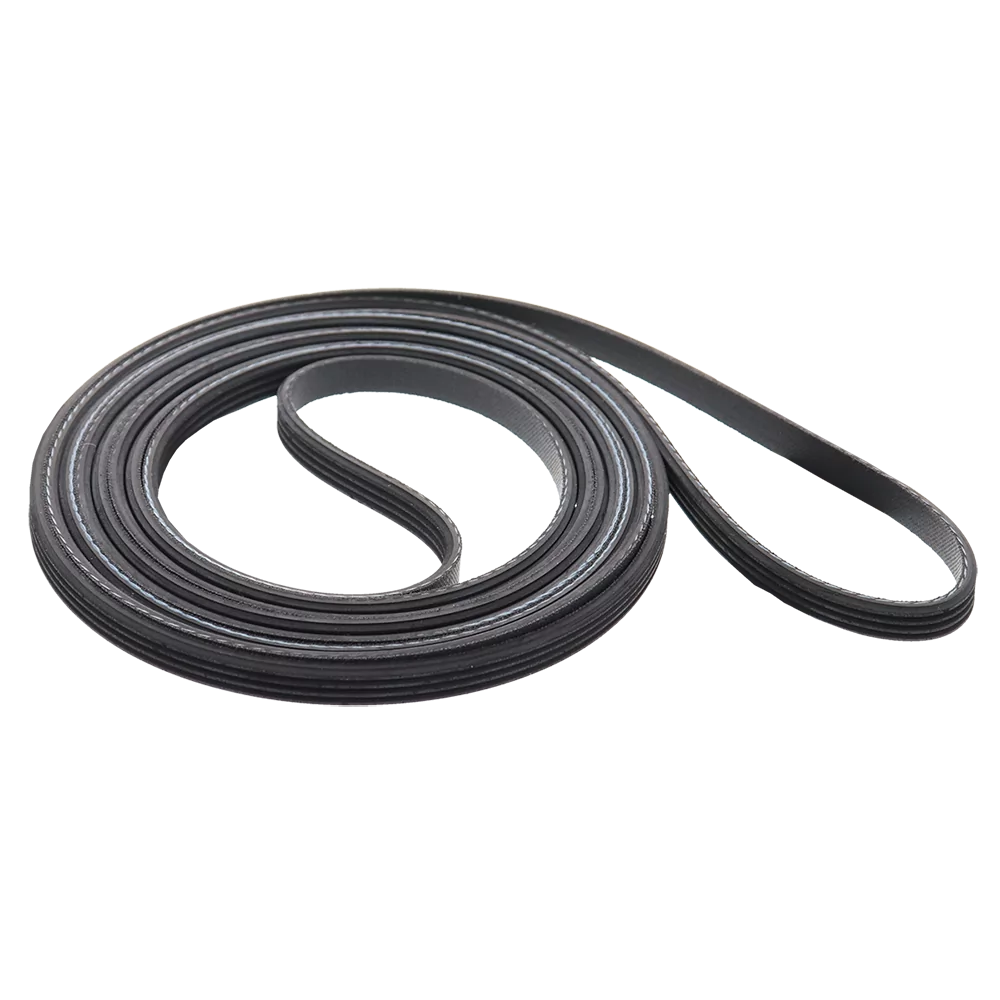

Dryer Belt ER341241

Description

Part No. ER341241   Dryer Belt

Part purpose:

Belt connects motor to drum.

Part location on dryer:

Belt installs around the drum and the motor pulley with the ribbed side toward the drum.

Part failure symptoms:

Rubber cracks and falls off in chunks.  Aging belt will become stretched, frayed and worn before breaking. Bad belts can make a thumping noise.

Part diagnosis:

Most common failure is a broken belt.  The belt should have well defined grooves toward the drum and pulley with no signs of wear on the smooth back.  Bring your parts in for free confirmation that it is good/bad or call the U-FIX-IT store for free assistance with diagnosis.

Fits many Whirlpool, Kenmore, Estate, Roper, KitchenAid dryers

Description

Flat continuous loop 92-1/4 inches long, 1/4 inch wide and has 4 ribs and 3 grooves. It replaces many other belts, including some with 5 ribs and 4 grooves.

Cross Reference Info:

Replaces Whirlpool 341241, Maytag 31531589, Maytag 53-0186, Maytag 53-1589, Maytag 53-2671, Maytag 53-1080, Maytag 31534589, Crosley 53-2910, Montgomery Wards 8066065, General Electric (GE) WE12x10011, LB276
