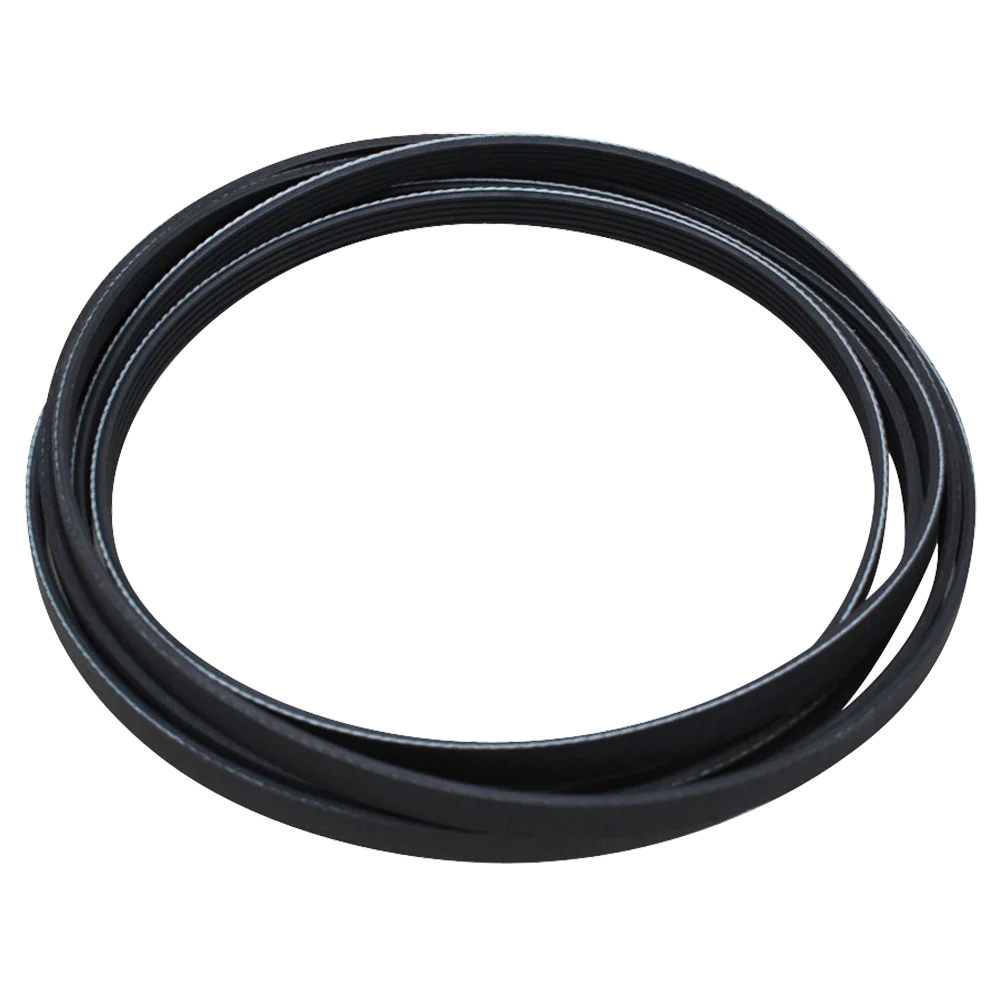

Dryer Belt ER 6602-001655

Description

Part No. ER6602-001655  Dryer Belt for Samsung

Part purpose:

Belt connects the motor to the drum.

Consider kit:

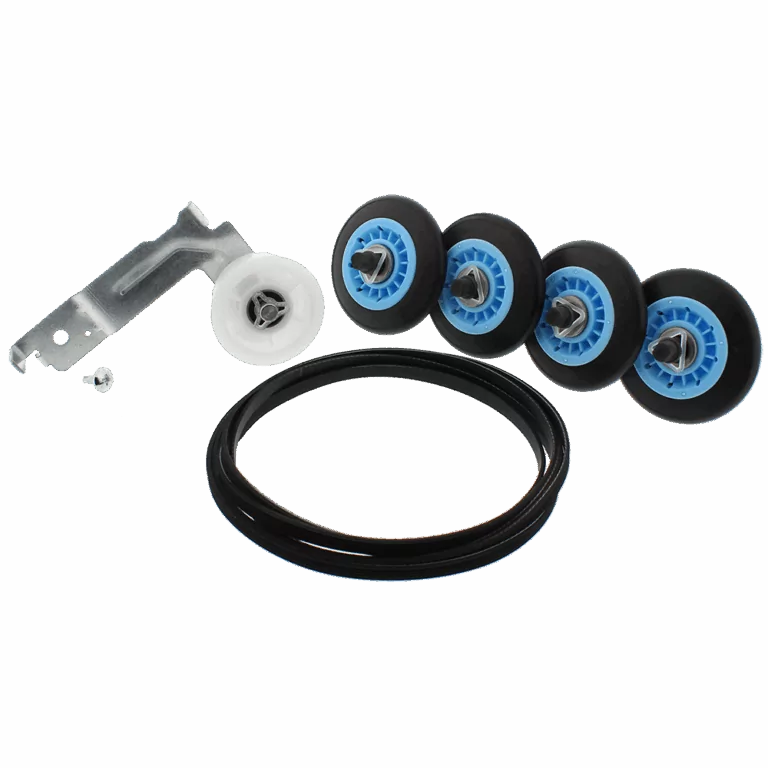

This belt is available as a part of kit ERDC97KIT4 which includes other wear items that many customers choose to replace when the belt needs replacing.

Part location on dryer:

The belt installs around the drum and the motor pulley with the ribbed side toward the drum.

Part failure symptoms:

Rubber cracks and falls off in chunks.  The aging belt will become stretched, frayed, and worn before breaking. Bad belts can make a thumping noise.

Part diagnosis:

The most common failure is a broken belt.  The belt should have well-defined grooves toward the drum and pulley with no signs of wear on the smooth back.  Bring your belt in for free confirmation that it is good/bad or call the U-FIX-IT store for free assistance with diagnosis.

Description

Flat continuous loop 92 inches long, 5/16 inch wide, and has 5 ribs and 4 grooves.

Cross Reference Info:

Replaces Samsung 6602-001655, 35001137, WPW101205415
