The transformer converts high voltage (120 volts or 220 volts) to low voltage (24 volts) used by the wall thermostat to turn the furnace and air conditioner on and off as needed.

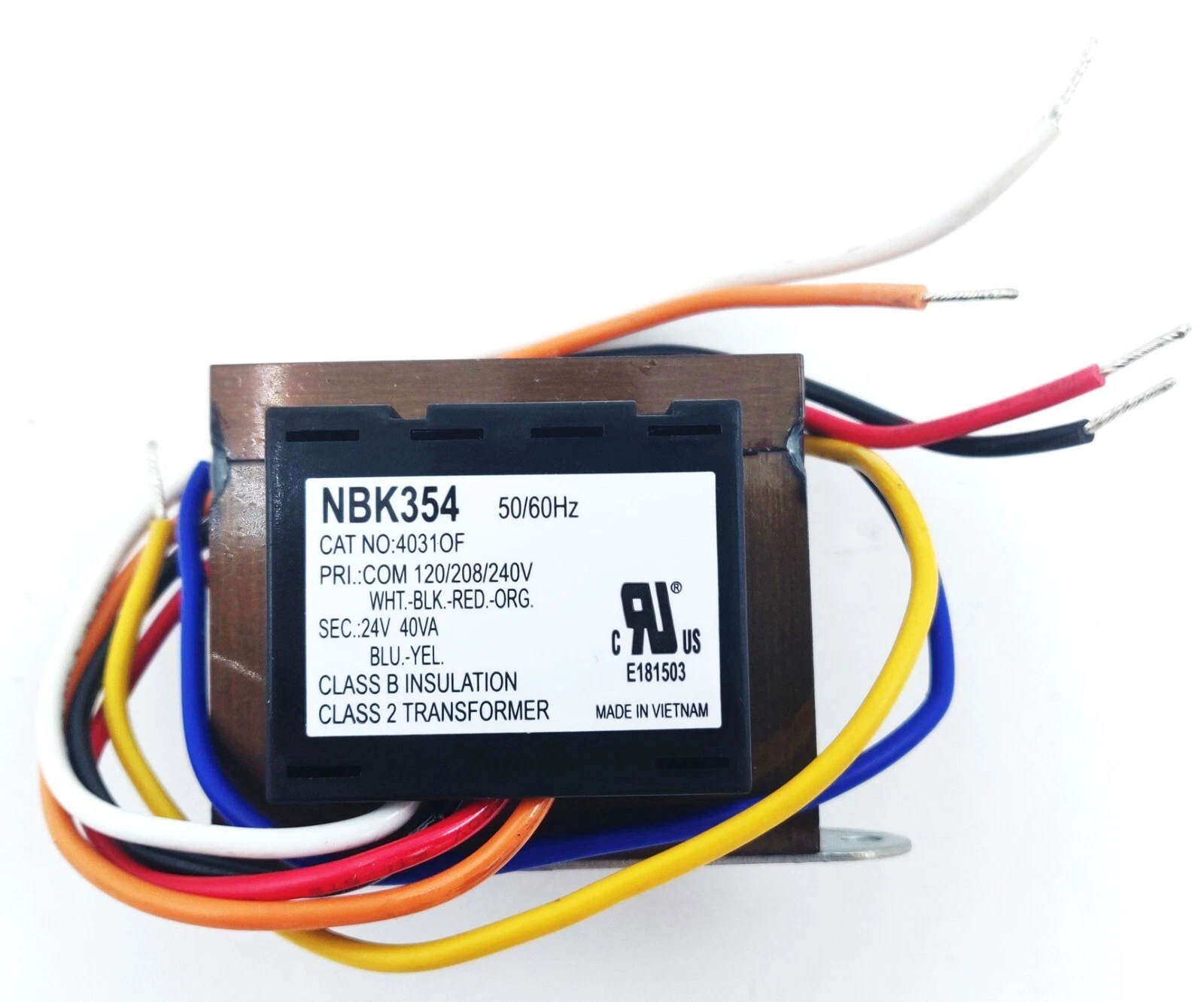

Furnace Transformer Specifications:
The MARS-2 Control Transformer 50354 is a 40VA transformer that powers 24 Vac circuits in HVAC systems. This is a NEMA transformer (Class II).
This transformer will replace 24 volt transformers on gas or electric furnaces. Input voltages of 120 volts, 208 volts or 240 volts may be used with this transformer.
Part failure symptoms:
Both the indoor unit and the outdoor unit fail to come on when thermostat is calling for cooling.
Part diagnosis:
Input voltage measures correctly with multimeter but 24 volts is not present on the output. Bring your “transformer” in for free confirmation that it is good/bad or call the U-FIX-IT store nearest you for free assistance with diagnosis.
Part Location:
Transformer is located inside the furnace near the control board.
Part Replaces:
This 40 VA transformer can compare to or replace the following popular control power transformers: Global GT4031F, Jard 4031F, Honeywell AT140A1018, AT40A1121, AT40A1139, AT140B1214, Universal UET105, UET115, Steveco / White Rodgers 90-T40F3, Packard PF42440.
This 24vac 40VA transformer can be used to replace most 24 volt transformers on furnaces.
Part Specifications:
VA: 40VA
Circuit Breaker: No
Primary Voltage: 120/208/240V 50/60Hz
Secondary Voltage: 24V with Wire Leads
Mount: Foot Mount Transformer
Dimensions: 3.5”³ x 2”³ x 2.25”³
Recommended Replacement Parts for 24V Transformer MR-50354
At U-FIX-IT our goal is to provide you with the help you need to get your appliance back in running order, even if it means we do not make a sale. Because of that promise we have become the industry go-to for all appliance parts related questions. Please fill out the form below and we will get back to you as soon as we can. If it is more urgent and you require immediate assistance, please call one of our stores.
Understanding the Function of the 24 Volt Transformer
The 24 Volt Transformer MR-50354 plays a crucial role in HVAC systems by converting high voltage to low voltage, allowing for safe operation of wall thermostats. This transformation is essential for controlling the heating and cooling systems in residential and commercial settings.
By stepping down the voltage from 120 volts or 220 volts to a manageable 24 volts, the transformer ensures that the thermostat can effectively signal the furnace or air conditioning unit to operate. This function is vital for maintaining comfortable indoor temperatures throughout the year.
Installation Guidelines for the MR-50354 Transformer
Proper installation of the 24 Volt Transformer MR-50354 is key to ensuring optimal performance and safety. It is recommended that installation be performed by a qualified technician to avoid any electrical hazards and to ensure compliance with local codes.
During installation, ensure that the transformer is mounted securely and that all electrical connections are tight. Following the manufacturer's guidelines will help prevent issues such as overheating or malfunction, contributing to the longevity of your HVAC system.
Common Issues and Troubleshooting Tips
Users may encounter several issues with the 24 Volt Transformer MR-50354, such as failure to power the thermostat or inconsistent operation of the HVAC system. Recognizing these symptoms early can help prevent more significant problems down the line.
To troubleshoot, first check the primary voltage supply to the transformer. Ensure that all connections are secure and that there are no visible signs of damage. If the transformer is not functioning as expected, it may need to be replaced or serviced by a professional.
Comparative Analysis of Compatible Transformers
When considering alternatives to the 24 Volt Transformer MR-50354, it's important to understand how it compares to other models in the market. This transformer is compatible with several popular models, making it a versatile choice for HVAC systems.
For instance, the MR-50354 can replace transformers such as the Global GT4031F and Honeywell AT140A1018. Understanding these alternatives can help users make informed decisions based on their specific system requirements and budget constraints.
